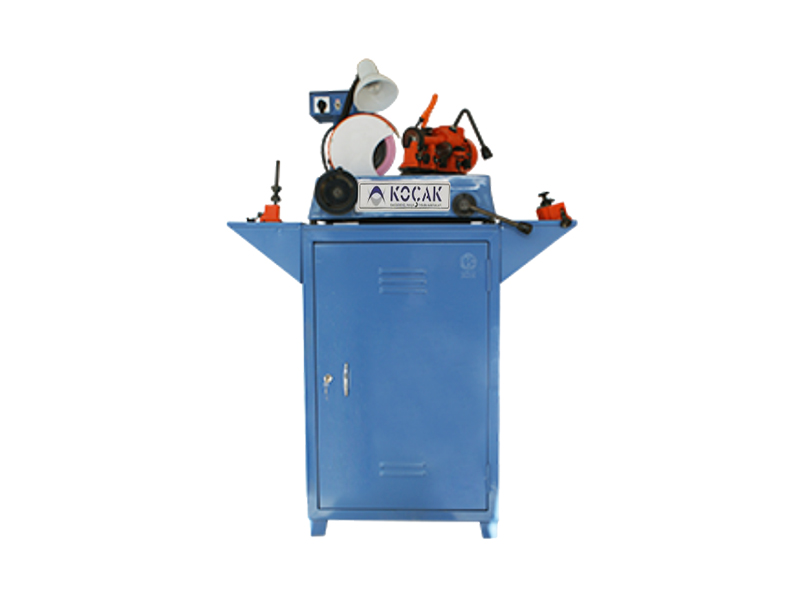

Valve Grinding Machine
Details
The valve grinder revolutionizes valve grinding. Instead of traditional chucks or lathe-mounted fixtures/locking systems, the "Double V" working system provides highly sharp and precise results, and is extremely easy to use. The unique valve locking system is highly versatile and can be applied to a wide variety of engines.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum Valve Head Diameter | 90 mm |
| Maximum Shaft Diameter | 16 mm |
| Minimum Shaft Diameter | 330 mm |
| Maximum Valve Length | 330 mm |
| Grinding Stone Size | 175x35 mm |
| Grinding Motor Speed | 2800 rpm |
| Grinding Motor Power | 0.36 kW |
| Grinding Head Longitudinal Movement | 70 mm |
| Height | 1410 mm |
| Length | 570 mm |
| Width | 480 mm |
| Approximate Weight | 90 kg |
